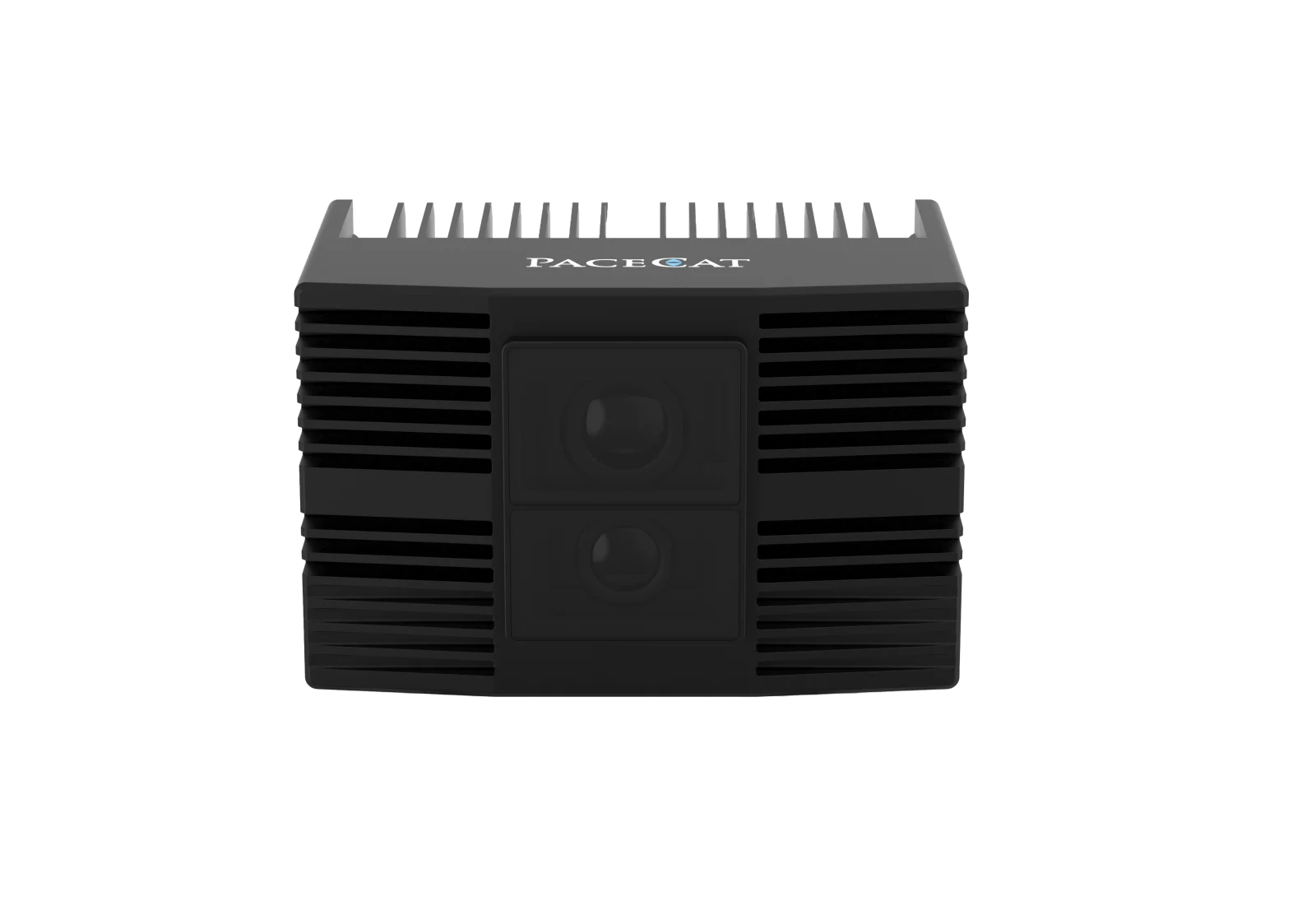

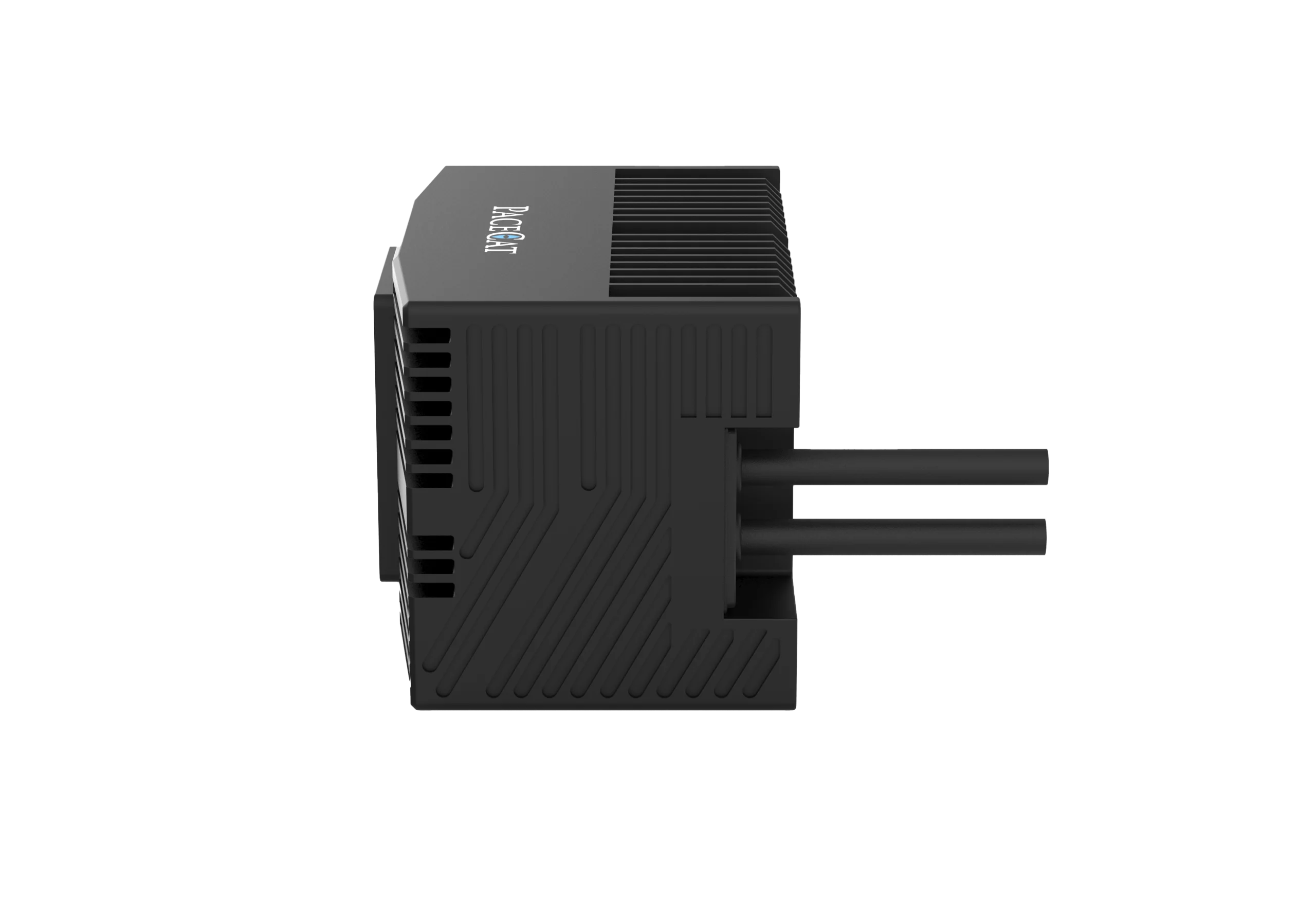

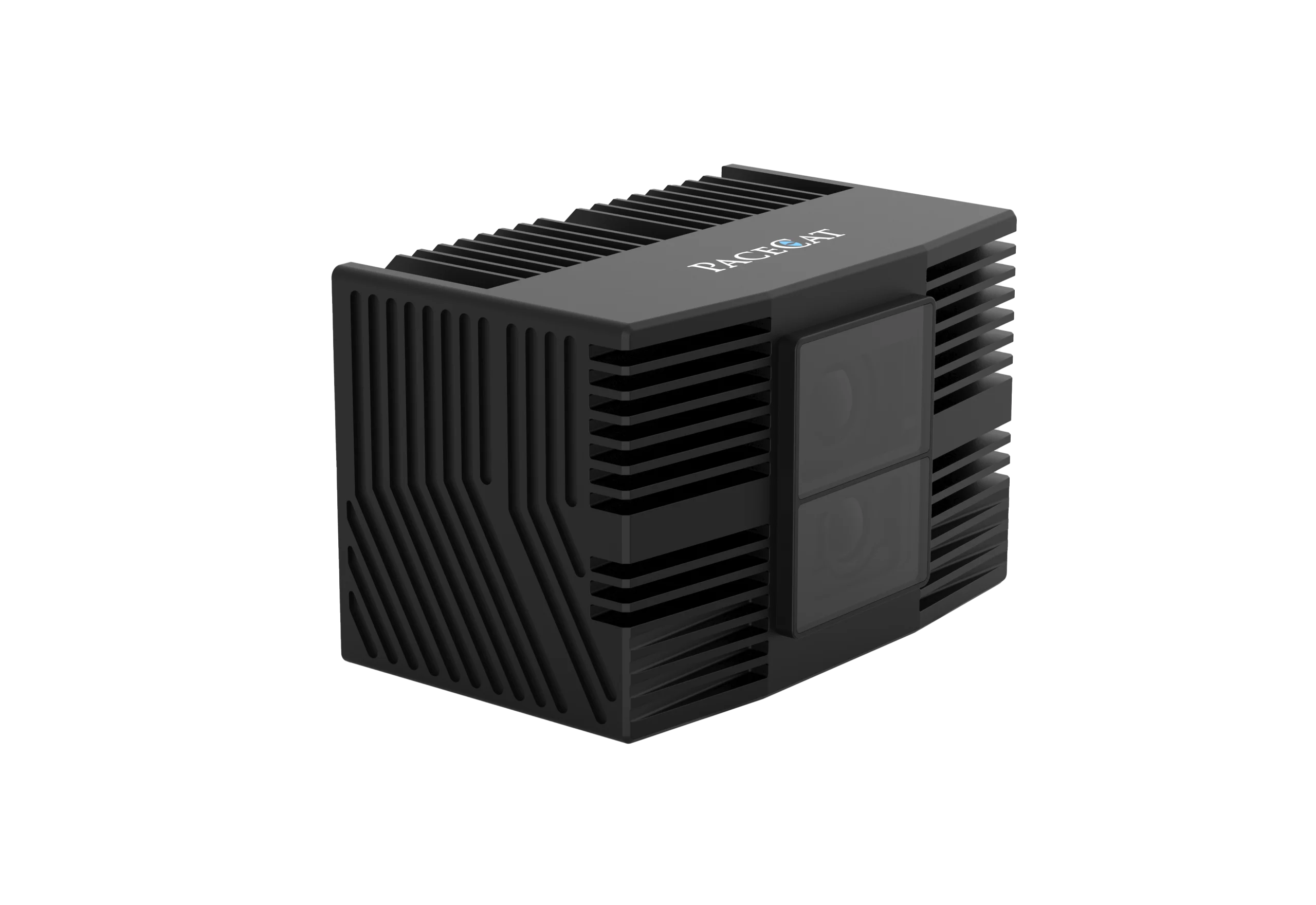

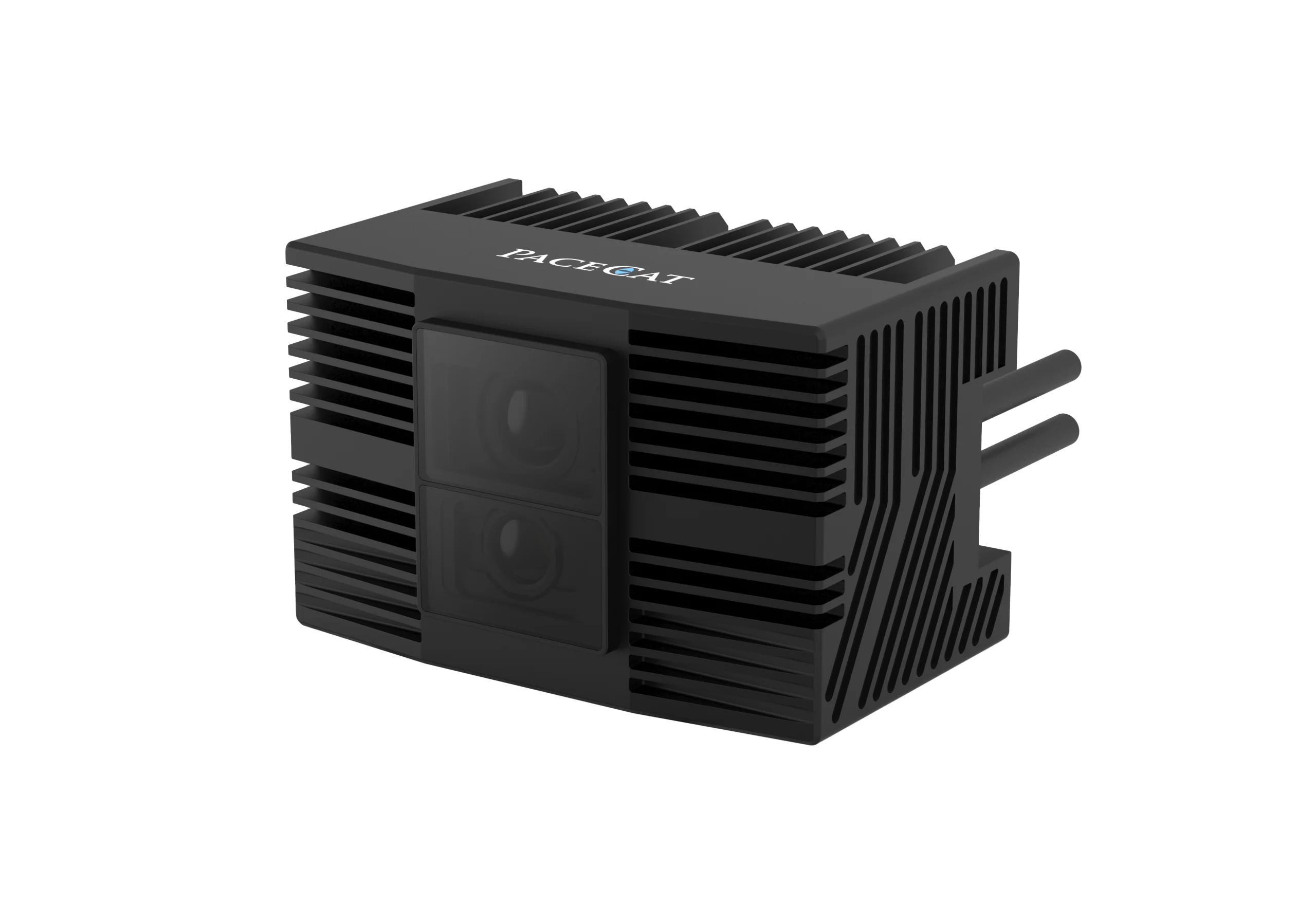

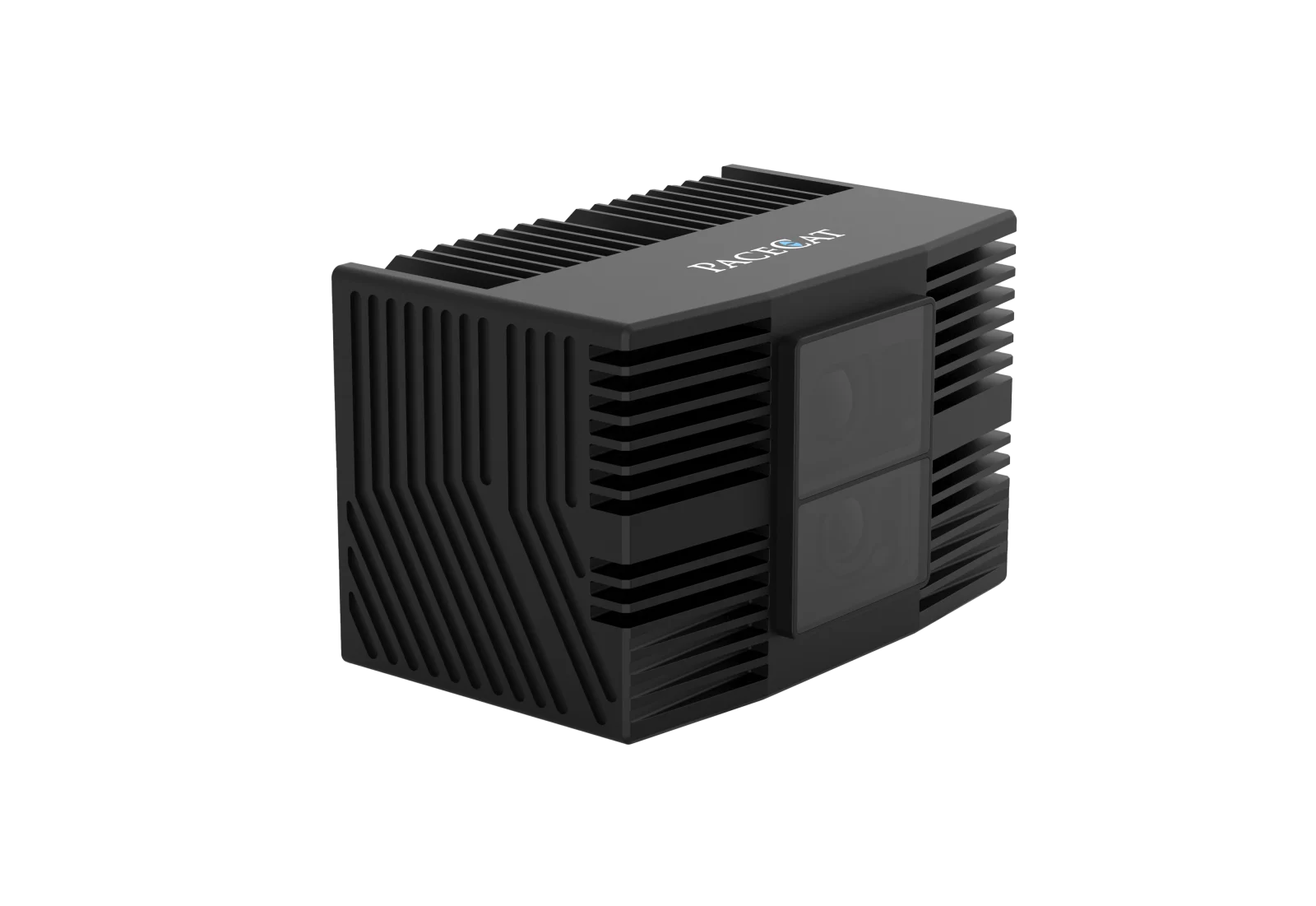

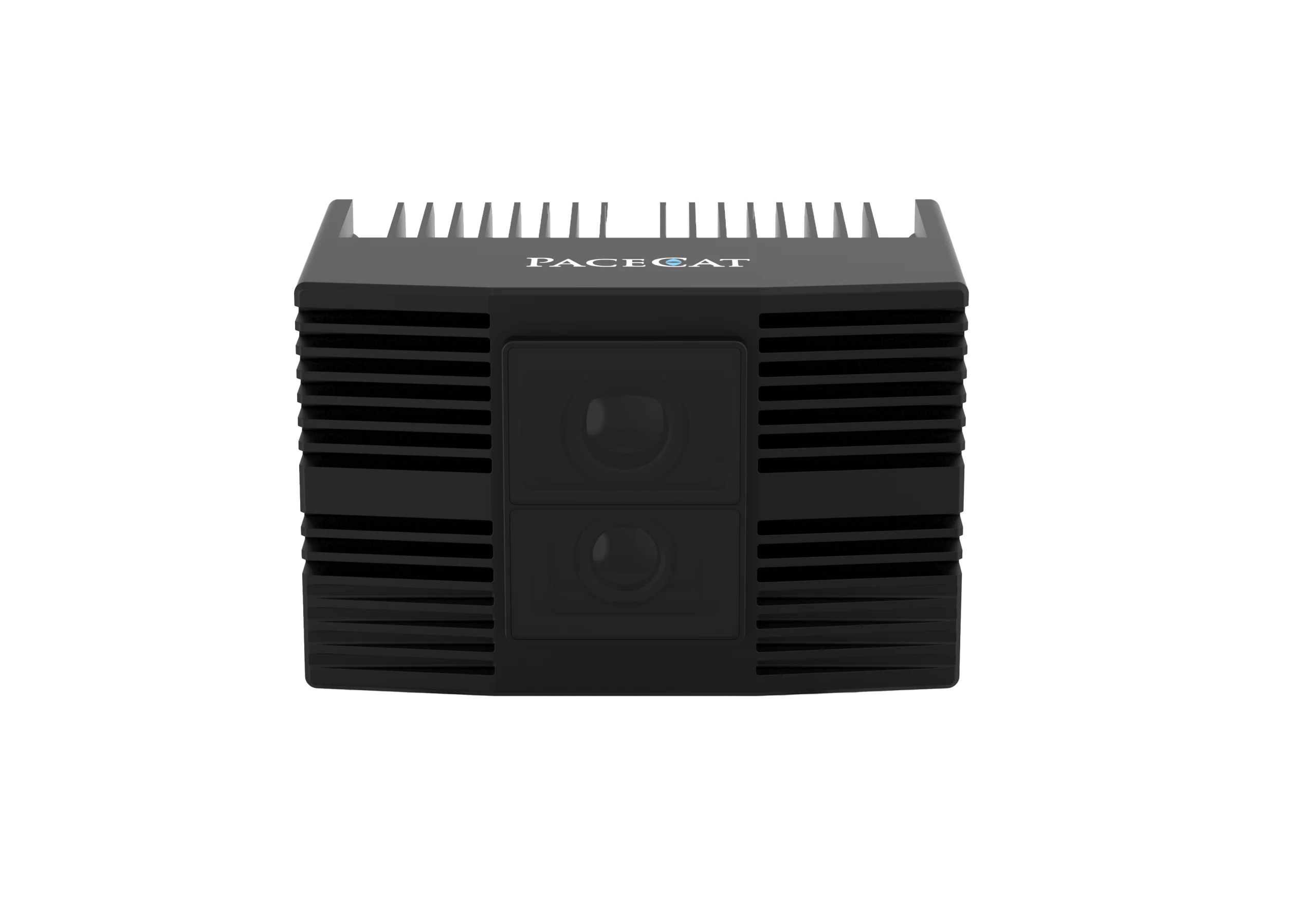

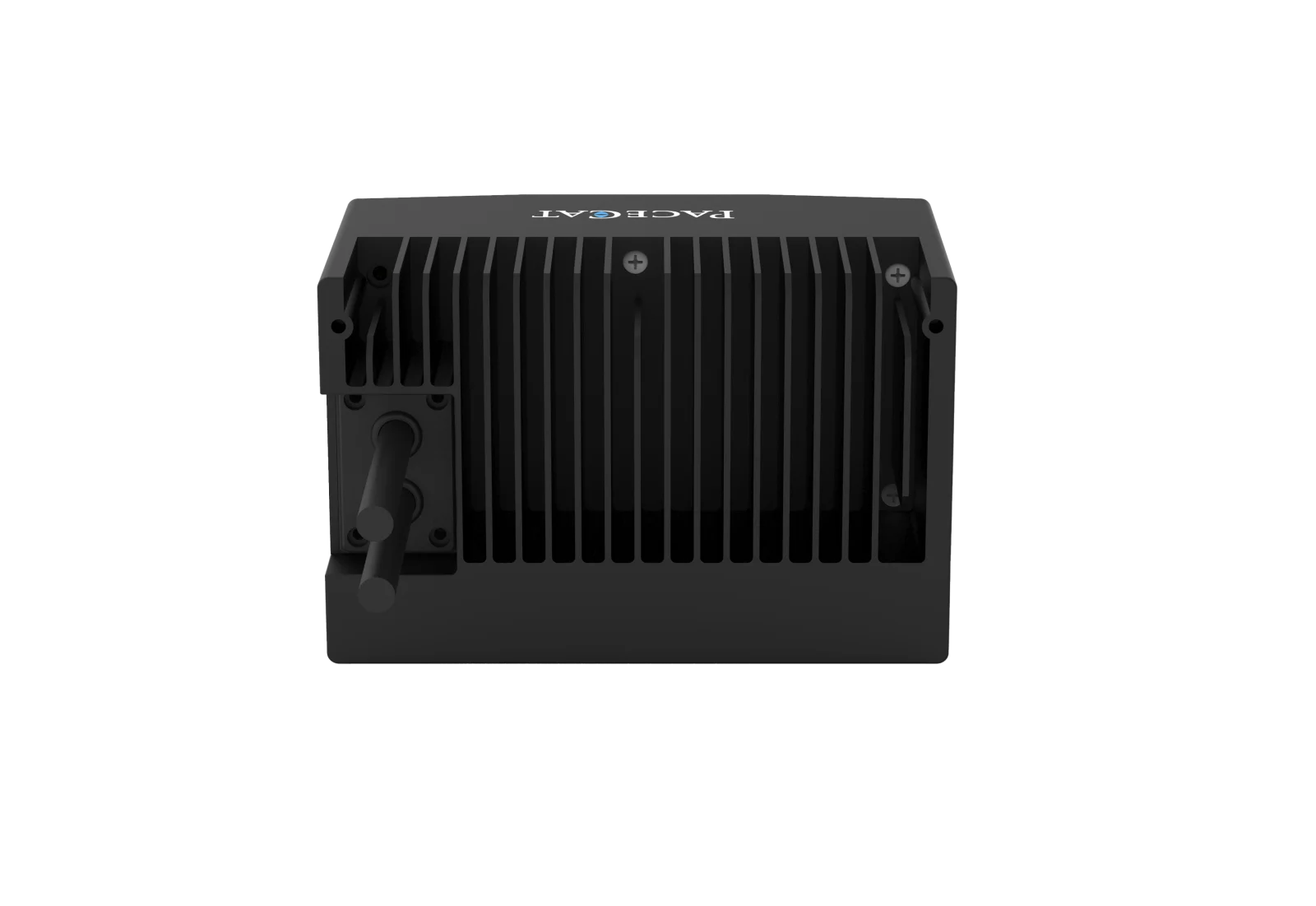

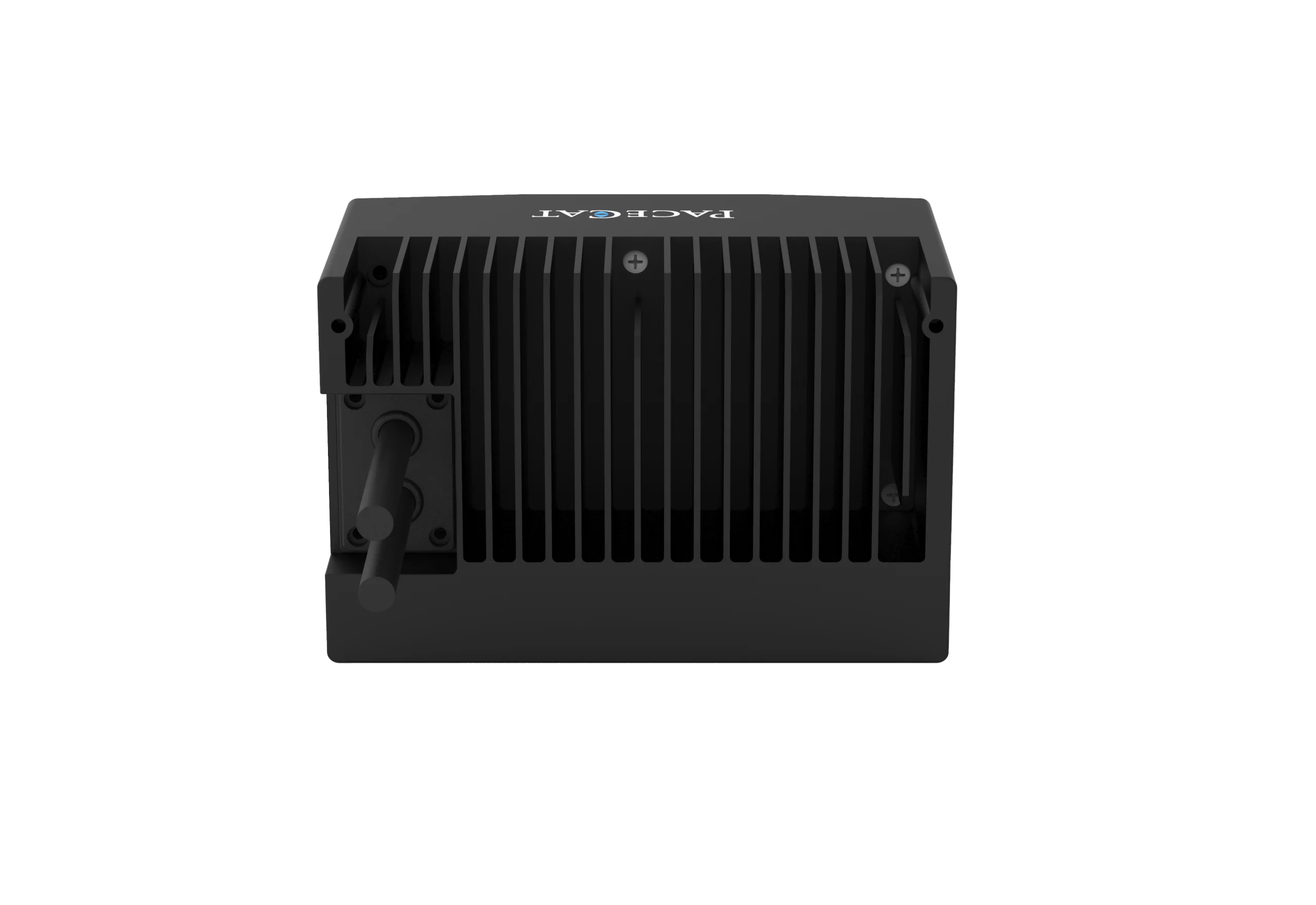

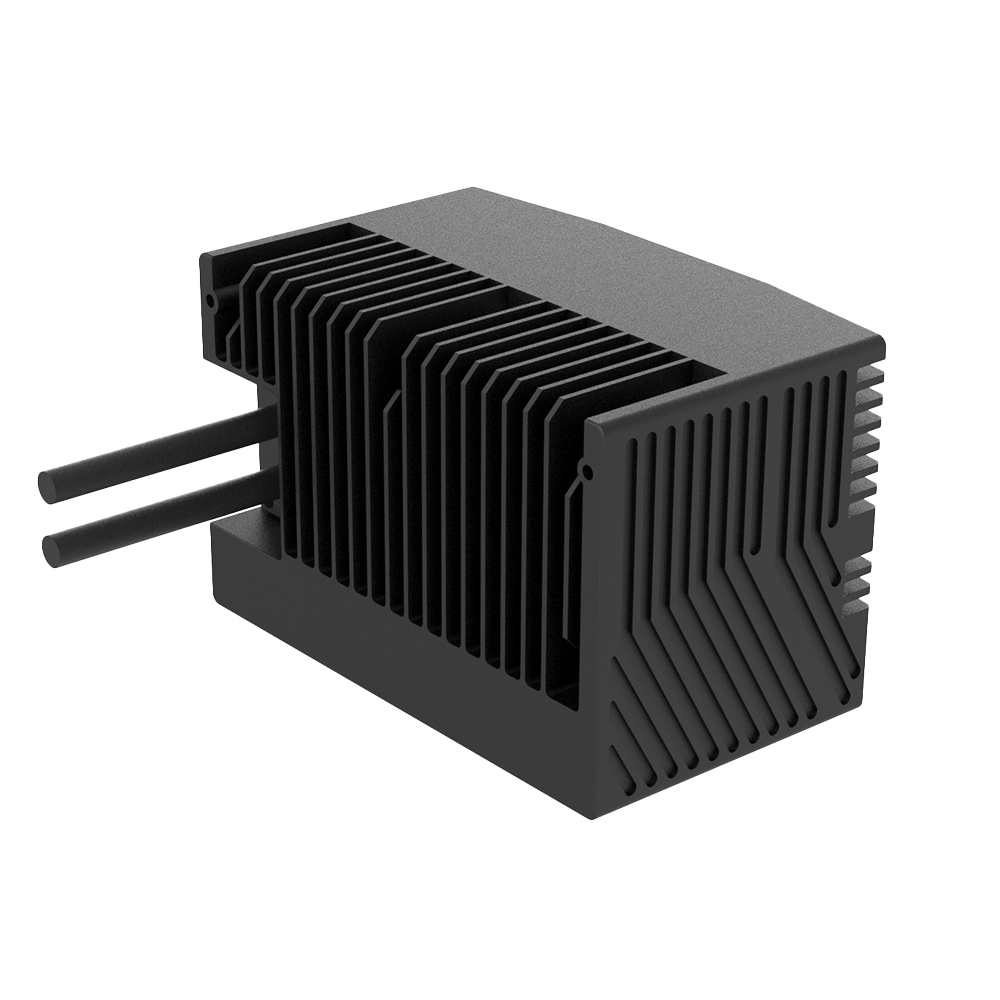

LDS-S300 Series LiDAR Sensor
Lidar Sensor

Reliable, High-Res, Swift

  • No Mechanical Structure
  • High-Resolution Imaging (360×150)
  • Long-Range Measurement (up to 40m)
  • Rapid Response Time

Get Your Free Quote

We will contact you within 24 hours.

    Security area protection

    Area structure sweeping

    Applications of LiDAR in various industries

    LiDAR technology is transforming the way we live and work. Nowadays, LiDAR has a wide range of applications in various fields. In smart warehouse logistics, LiDAR assists robots in precise navigation and efficient cargo handling, achieving intelligent warehouse management. In topographic surveying, it can quickly and accurately obtain data on the elevation, slope, and other characteristics of large areas, providing detailed information for map-making. In everyday life, it helps service robots to scan the environment in real time, identifying obstacles, walls, and furniture, allowing them to plan cleaning paths more effectively and improve work efficiency. LiDAR provides strong support for the digital transformation across various industries.

    LDS-S300 Series LiDAR Sensor

    Mechanical Structure-Free: Reduces the risk of mechanical damage, enhancing stability and reliability.

    High-Resolution Imaging: A resolution of 360×150 and equivalent to 150 lines,

    capable of capturing detailed shapes and spatial information.

    Long-Range Measurement Capability: Precisely measures distances within a range of 40 meters, suitable for various long-distance application scenarios.

    Rapid Response Time: The solid-state laser allows for quick capture and real-time data output.

    Specs

    ModelLDS-S300-E
    Laser Wave Length905nm±15nm
    Distance0.1–40m@90%
    0.1~25m@10%
    Measure Frequency1.5MHZ
    Scan Frequency10Hz
    Echo ModeSingle Pulse
    Echo intensityYes
    Scanning PrincipleSolid State Flash
    Laser points360*150
    Vertical Angle50°
    Measure Angle120°
    Vertical Resolution0.33°
    Horizontal Resolution0.33°
    Ranging Accuracy±5cm
    Range Resolutionmm
    Communication InterfaceEthernet interface
    Optical Interference Resistance100KLux
    Weight<700g
    Supply Voltage12VDC±2V
    Working Temperture-20℃~55℃
    Power Dissipation≤ 10W
    Protective ClassIP65
    Size(mm)68*68*65
