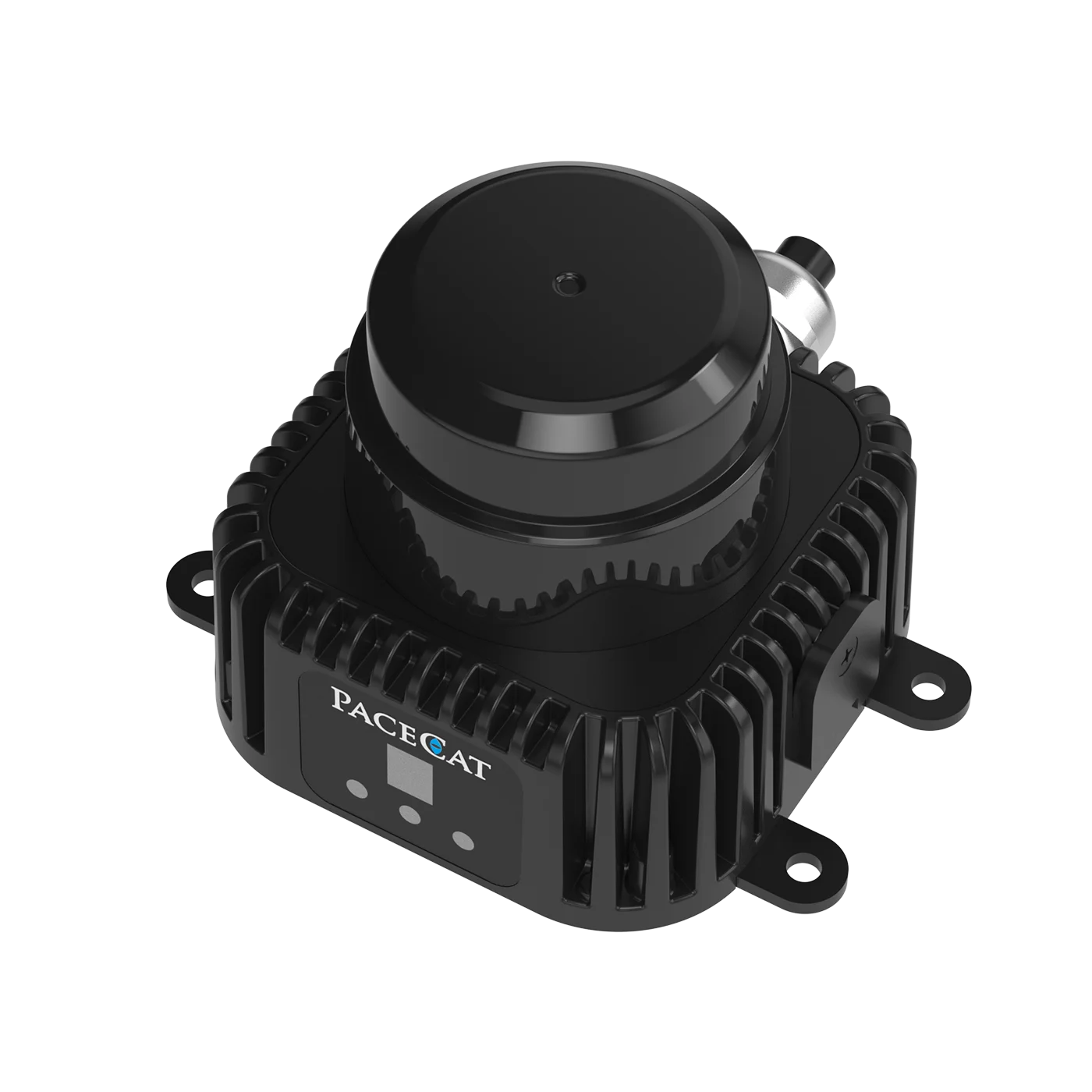

LSS-10/40 Series LiDAR Sensor

Reliable Performance, Versatile Usage, User-Friendly

  • Robust metal casing with IP67 protection ensures durability.
  • 360-degree panoramic scanning for comprehensive environmental awareness.
  • Ultra-long detection range up to 40 meters for long-distance sensing needs.
  • Outputs both point cloud and area information for flexible detection configurations.
  • Multiple interface options for high compatibility and easy integration.

Get Your Free Quote

We will contact you within 24 hours.

    Security area protection

    Area structure sweeping

    Applications of LiDAR in various industries

    LiDAR technology is transforming the way we live and work. Nowadays, LiDAR has a wide range of applications in various fields. In smart warehouse logistics, LiDAR assists robots in precise navigation and efficient cargo handling, achieving intelligent warehouse management. In topographic surveying, it can quickly and accurately obtain data on the elevation, slope, and other characteristics of large areas, providing detailed information for map-making. In everyday life, it helps service robots to scan the environment in real time, identifying obstacles, walls, and furniture, allowing them to plan cleaning paths more effectively and improve work efficiency. LiDAR provides strong support for the digital transformation across various industries.

    LSS-10/40 Series LiDAR Sensor

    The LSS-10/40 series is a small, sealed-housing LiDAR with a 360-degree full-range scanning capability, capable of detecting up to 40 meters.

    It is primarily used for equipment collision avoidance and intelligent area detection,

    supports flexible zone setting through 4 input/output switch quantities, and can output point cloud data.

    This radar has an IP67 level of waterproof performance, offers a variety of interface options including Ethernet, USB serial, and IO ports,

    and can be expanded to an RS485 interface to meet the diverse needs of customers.

    Specs

    ModelLSS-10A-C30E44LSS-40S-B20E44LSS-40D-C30ELSS-40D-C20E
    Laser Wave Length905nm±15nm905nm±15nm905nm±15nm905nm±15nm
    Distance0.1–20m@90%
    0.1~8m@10%
    0.1–40m@90%
    0.1~10m@10%
    0.1–40m@90%
    0.1~10m@10%
    0.1–40m@90%
    0.1~10m@10%
    Measure Frequency18kHz18kHz18kHz30kHz
    Scan Frequency10HZ,15HZ10HZ,15HZ10HZ,15HZ10HZ,15HZ
    Echo ModeSingle PulseSingle PulseSingle PulseSingle Pulse
    Echo intensity0-2540-2540-2540-254
    DriveBuilt-in dc brushless motorBuilt-in dc brushless motorBuilt-in dc brushless motorBuilt-in dc brushless motor
    Measure Angle360°360°360°360°
    Angle Resolution0.2°@10HZ
    0.3°@15HZ
    0.2°@10HZ
    0.3°@15HZ
    0.2°@10HZ
    0.3°@15HZ
    0.12°@10HZ
    0.2°@15HZ
    Ranging Accuracy±30mm±30mm±30mm±30mm
    Range Resolutionmmmmmmmm
    Communication InterfaceUSB/Ethernet 100Mbit/sUSB/Ethernet 100Mbit/sUSB/Ethernet 100Mbit/sUSB/Ethernet 100Mbit/s
    Optical Interference Resistance>80000LX>80000LX>80000LX>80000LX
    Weight330g330g330g330g
    Supply Voltage10VDC~26VDC10VDC~26VDC10VDC~26VDC10VDC~26VDC
    Working Temperture -10℃~ +50℃ -10℃~ +50℃ -10℃~ +50℃ -10℃~ +50℃
    Power Dissipation≤ 4W≤ 4W≤ 3W≤ 3W
    Protective ClassIP65/IP67IP65/IP67IP65/IP67IP65/IP67
    Size(mm)88(68)x68x59mm88(68)x68x59mm88(68)x68x59mm88(68)x68x59mm
