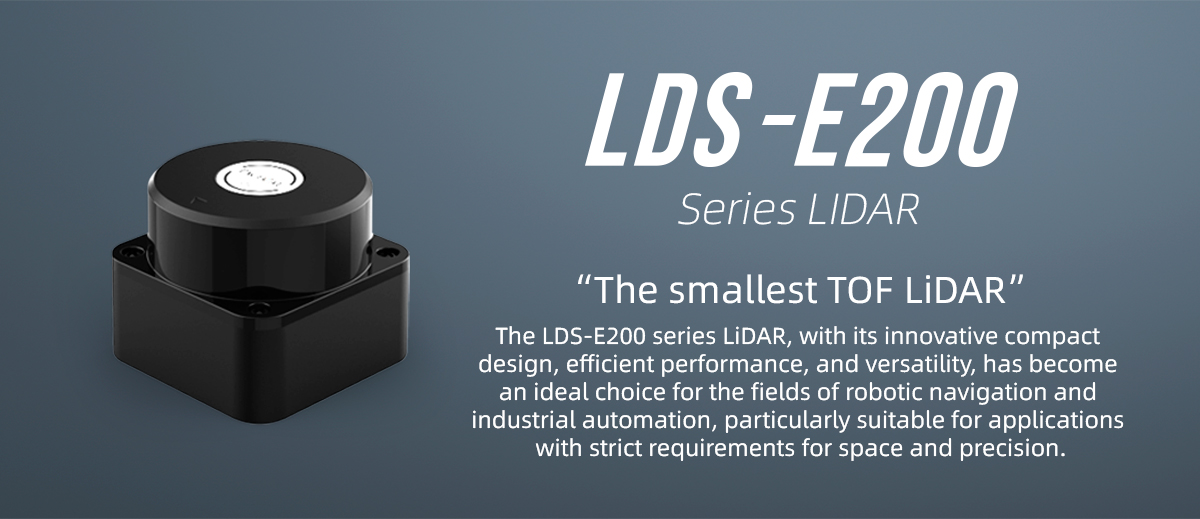

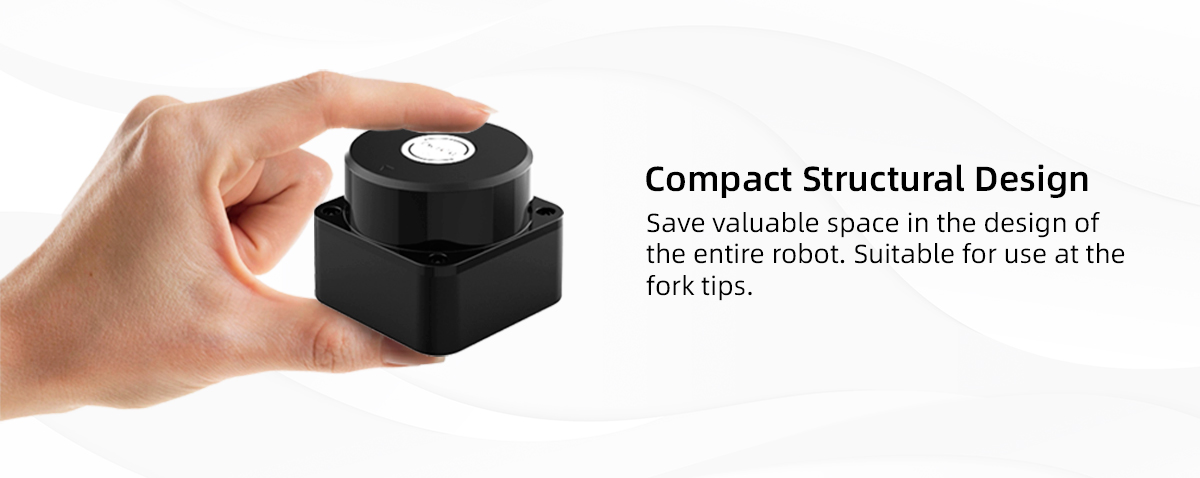

LDS-E210 Series LiDAR Sensor

Long Service Life、 Excellent Dirt Resistance、Strong Anti-interference Capability

  • It has hardware filtering and de-jittering functions, which can effectively avoid interference caused by some noise points.
  • It can synchronously output the reflection intensity of the target object, which can be used for algorithmic judgment.
  • The measurement accuracy can reach ±25mm, and the linearity for different reflectivity targets is good.
  • Optical wireless data transmission, brushless motor design, long service life.
  • The special optical design effectively enhances the dirt resistance capability.

Get Your Free Quote

We will contact you within 24 hours.

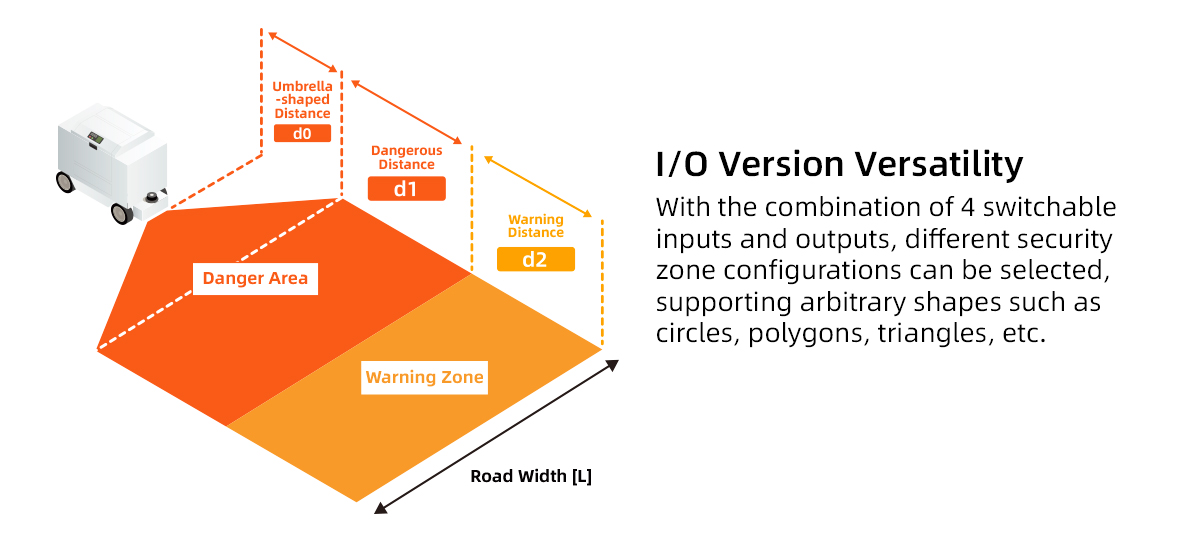

    Security area protection

    Area structure sweeping

    Applications of LiDAR in various industries

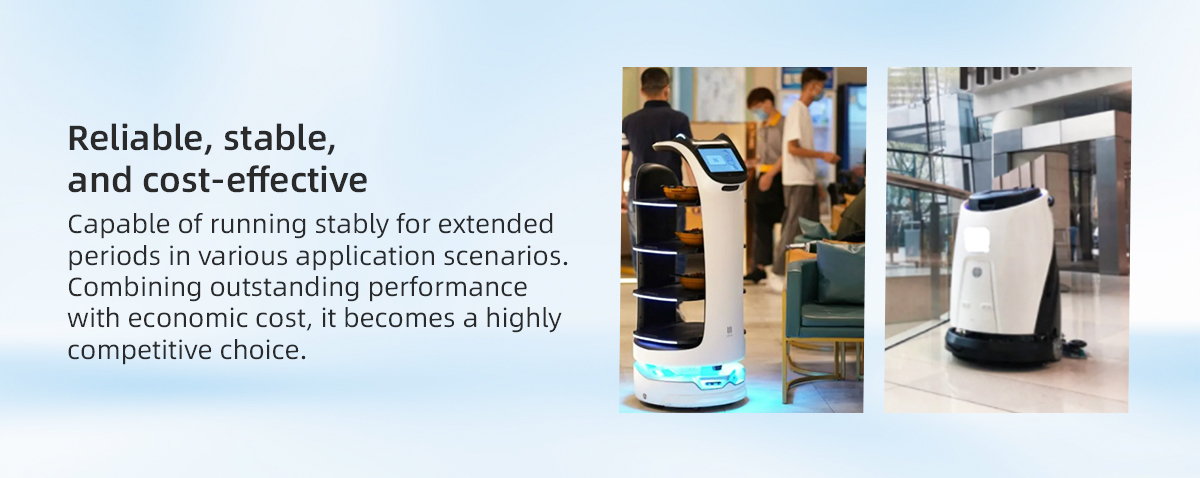

    LiDAR technology is transforming the way we live and work. Nowadays, LiDAR has a wide range of applications in various fields. In smart warehouse logistics, LiDAR assists robots in precise navigation and efficient cargo handling, achieving intelligent warehouse management. In topographic surveying, it can quickly and accurately obtain data on the elevation, slope, and other characteristics of large areas, providing detailed information for map-making. In everyday life, it helps service robots to scan the environment in real time, identifying obstacles, walls, and furniture, allowing them to plan cleaning paths more effectively and improve work efficiency. LiDAR provides strong support for the digital transformation across various industries.

    LDS-E210 Series LiDAR Sensor

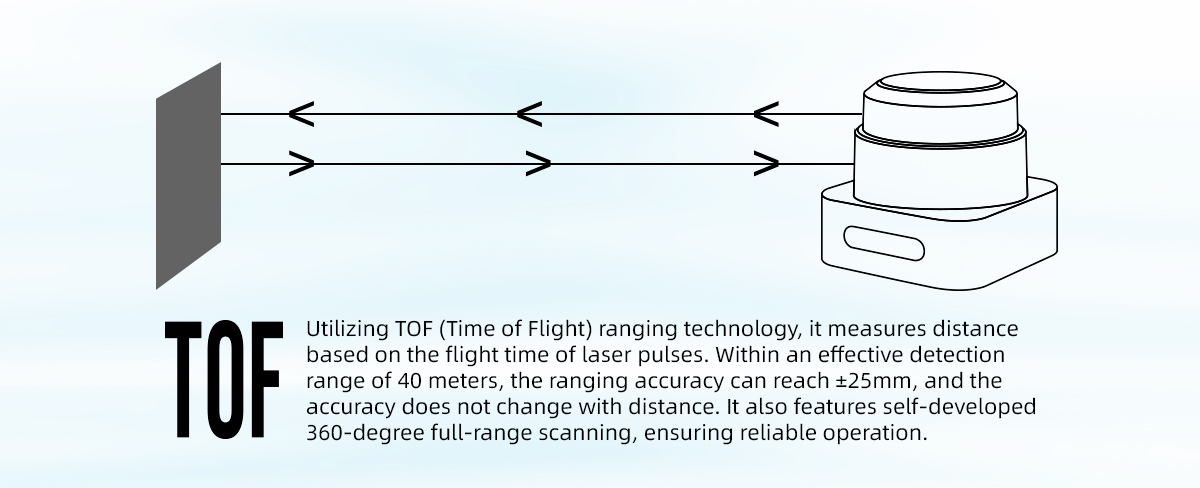

    The LDS-E210-E laser radar uses a near-infrared pulsed laser as its light source.

    The laser pulses are emitted within a duration of only nanoseconds.

    This ensures the safety of humans and pets and complies with the EN/IEC 60825-1 Class 1 level laser safety standard.

    The application of near-infrared pulsed lasers combined with filters can effectively avoid light interference, and thus can be used normally in both indoor and outdoor environments.

    Specs

    Model LDS-E210-E
    Laser Wave Length 905nm±15nm
    Distance 0.1-30m(90%)
    0.1-15m(10%)
    Laser Divergence Angle 10.3±0.5mrad
    Scan Frequency 10HZ,15HZ,20HZ
    Laser Level Parallelism 0°±0.3°

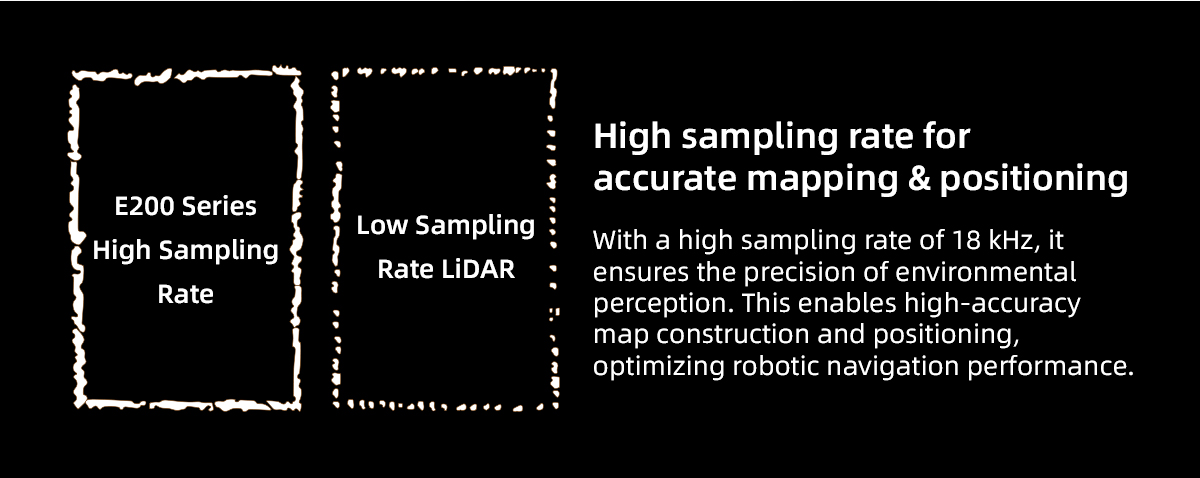

    Measurement Rate 36000 measured value/s
    Sense of Rotation Clockwise and counterclockwise configurations are available (default is counterclockwise)

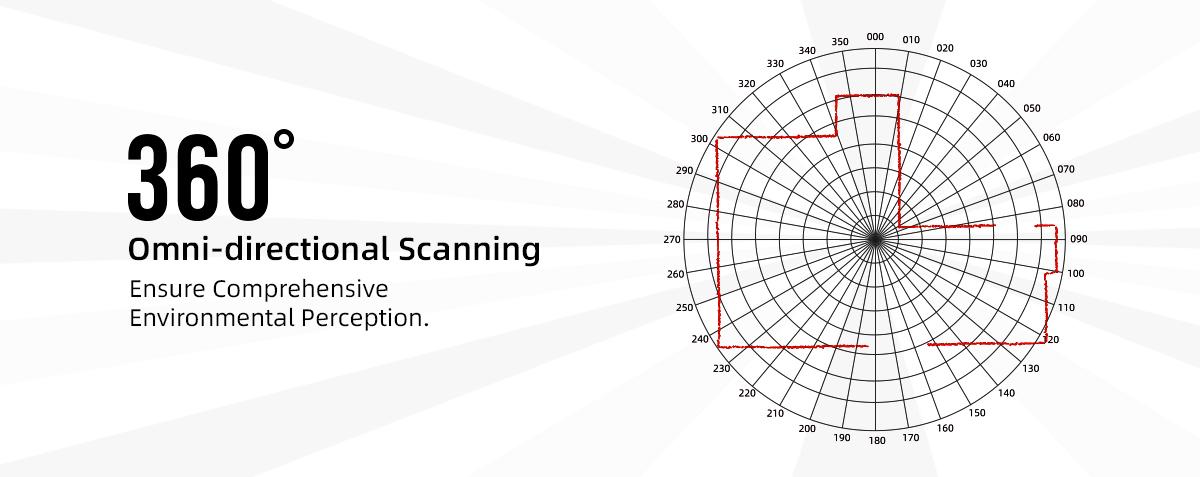

    Scanning Area 360°
    Angle Resolution 0.1°,0.15°,0.2°
    Ranging Accuracy ±25mm
    Range Resolution mm
    Communication Interface Ethernet
    Optical Interference Resistance 100kLux
    Supply Voltage 10VDC~26VDC
    Storage Temperature -30°C~70°C
    Working Temperture -10°C~55°C
    Power Dissipation ≤ 2.5W
    Protective Class IP65
    Size(mm) 46x46x38mm
