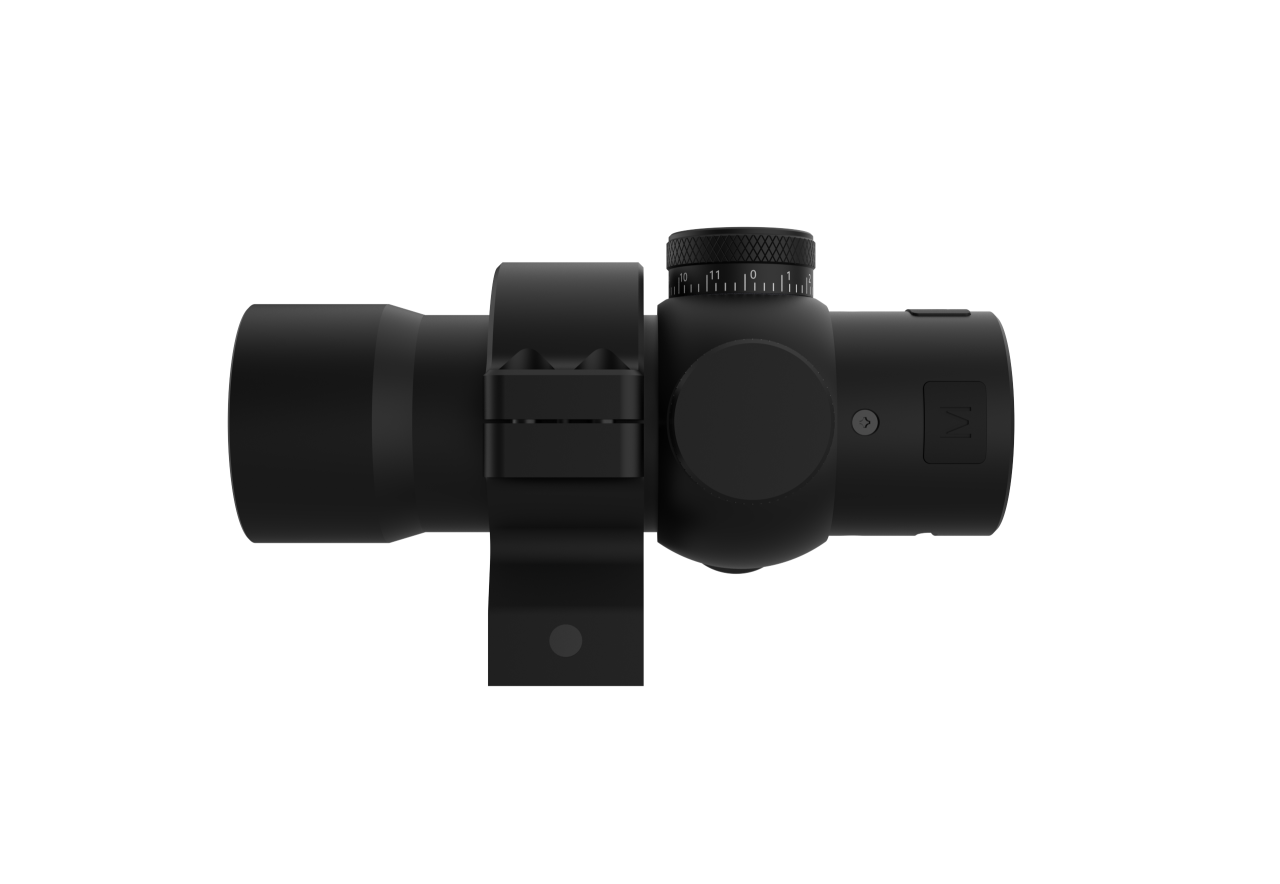

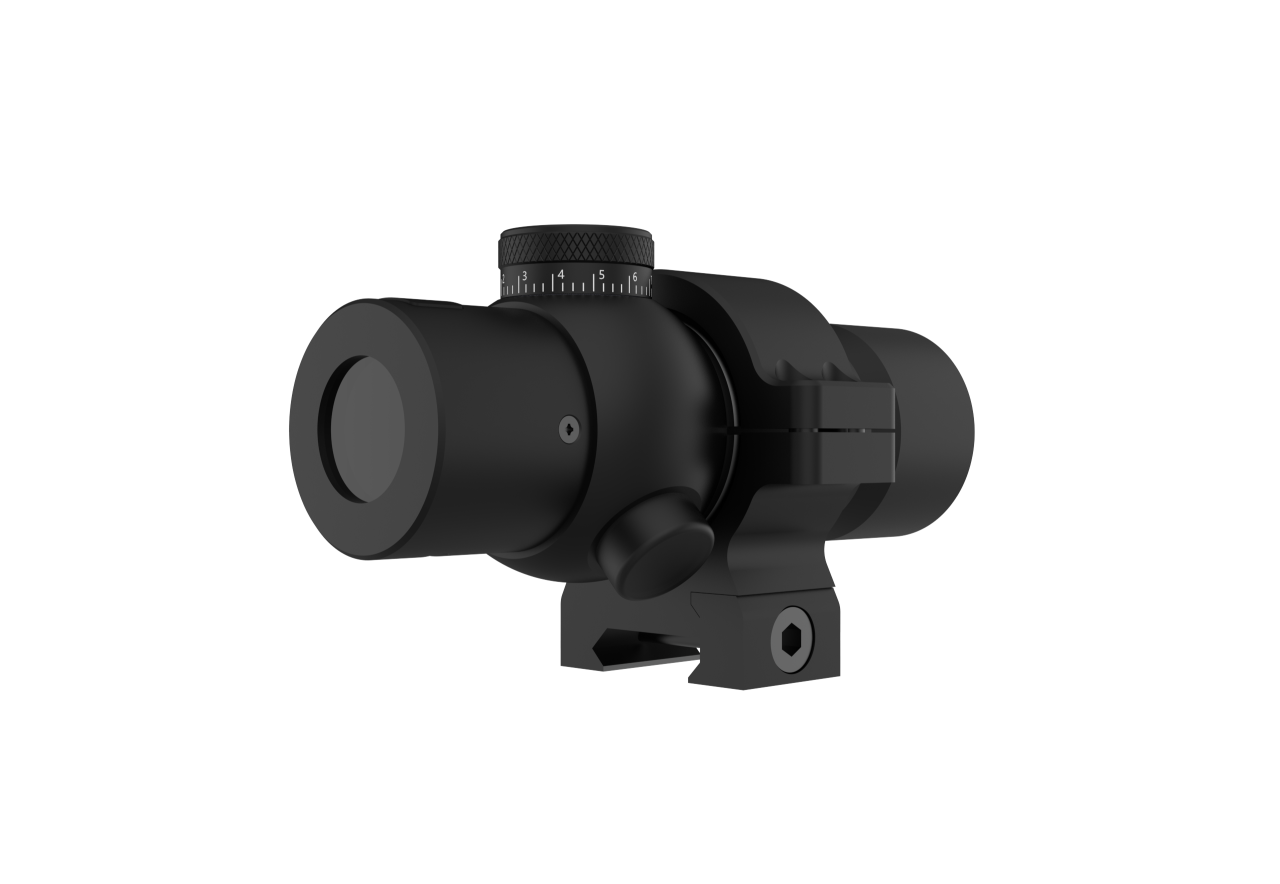

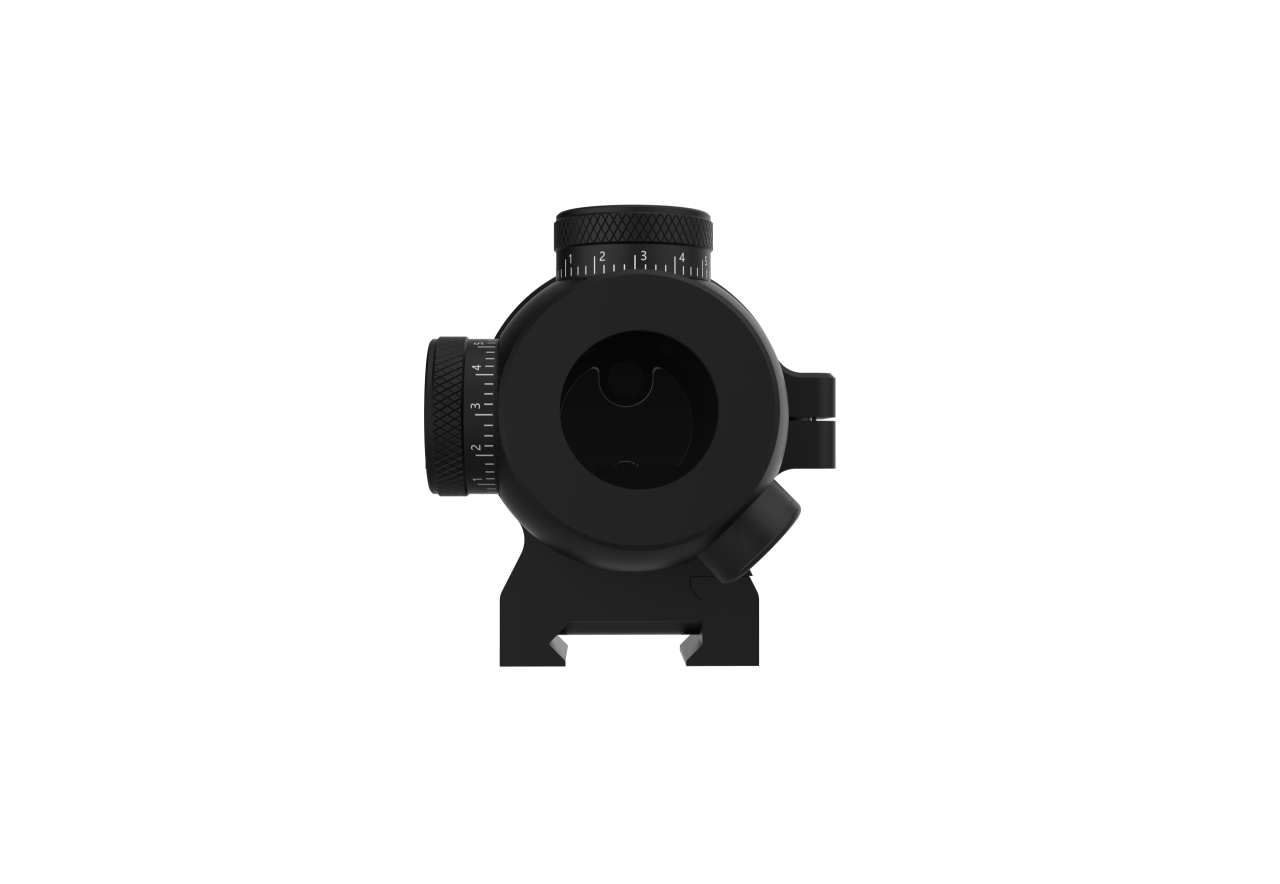

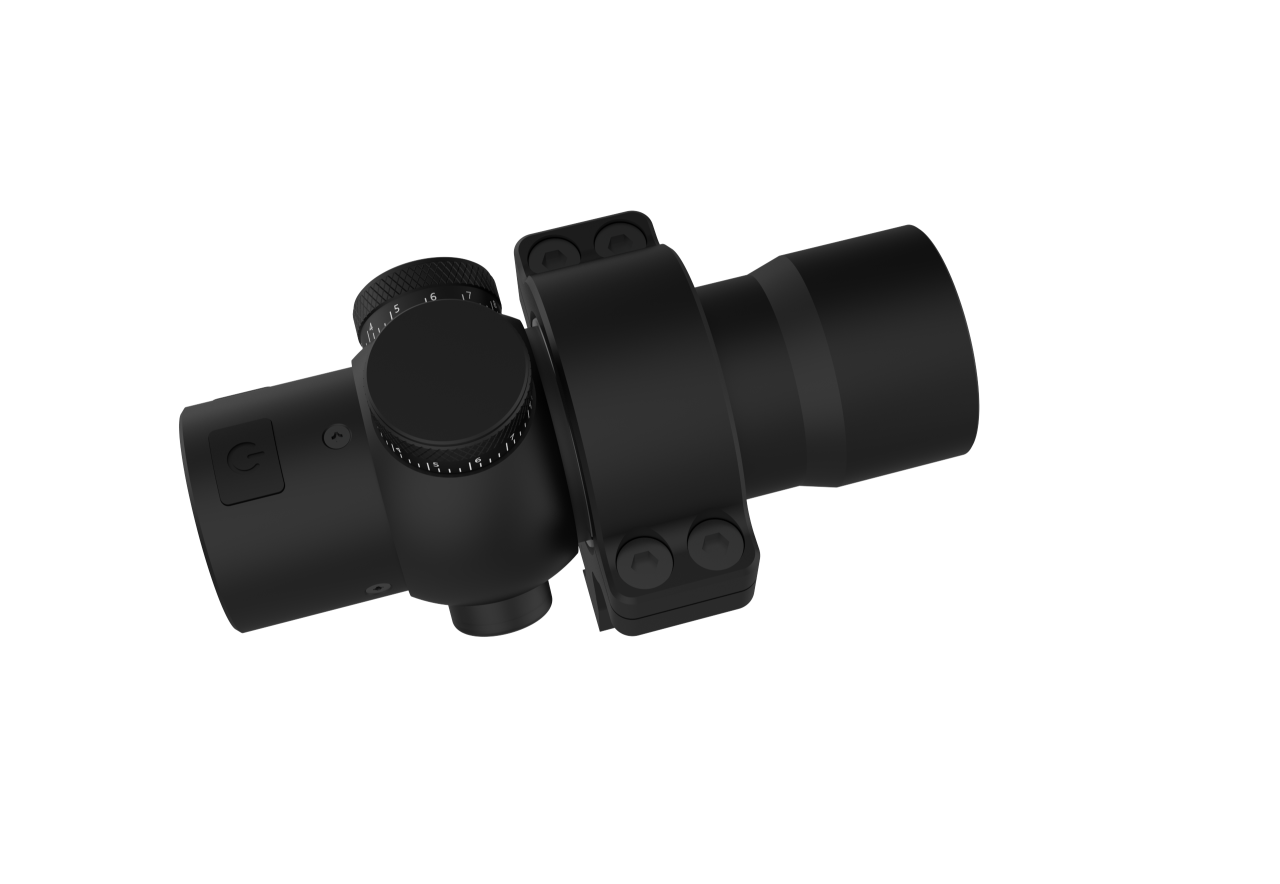

LD68 Ranging Module With Ballistic Solution Function

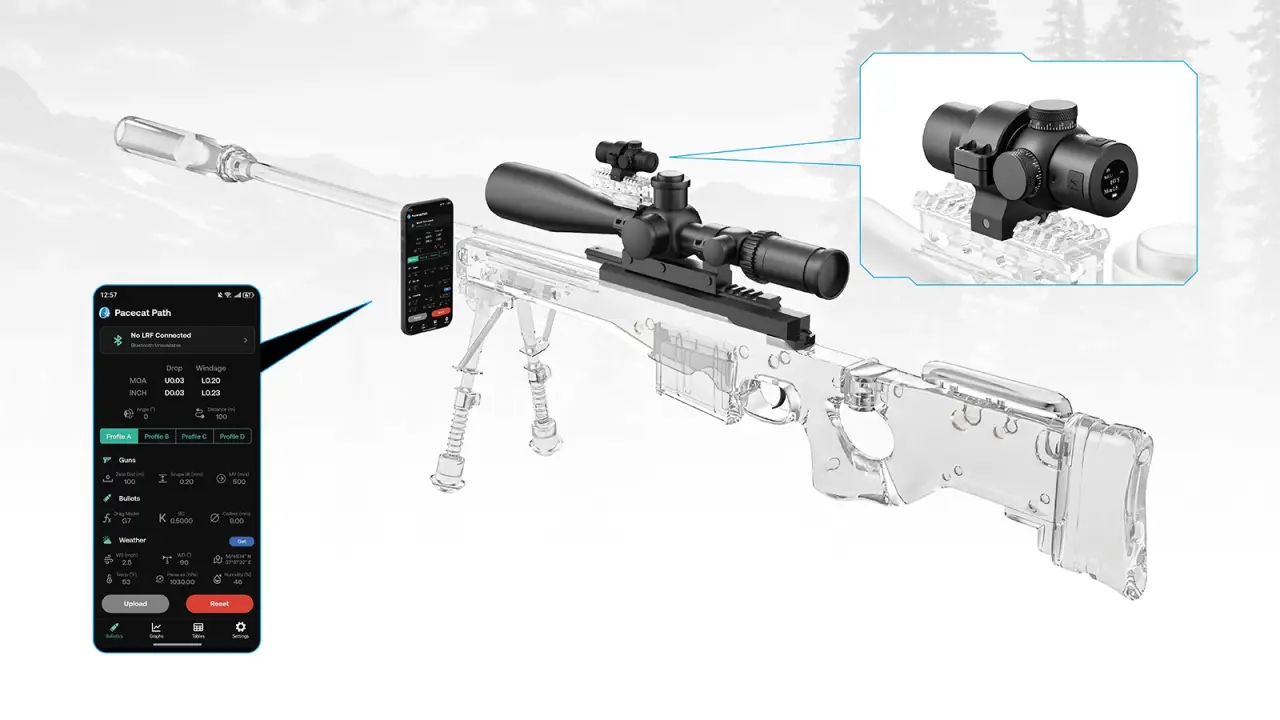

Ballistic Solution Function
- Precision Laser Technology
- Ultra-Fast & Accurate Ranging
- Robust & Reliable
- Intelligent & Connected
- Reliability
- Compact & Ergonomic Design
Specs
| Laser Wave | 905nm |
| Objective Lens Diameter | Φ20.8mm (Cutting) |
| Transmitting Lens Diameter | Φ6mm |
| Divergence Angle | <3mrad |
| Measuring Distance | 5-1500m (White House); 1200m (Green Tree); 800m (Deer) |
| Measuring Accuracy | ≤1000m, ±1m; >1000m, ±0.2% |
| Ranging Speed | <0.2s |
| Waterproof Rate | IP67 |
| Laser Safety | IEC 60825-1 CLASS 1 |
| Function | Angle Function; Bluetooth; Ballistic Calculation; OTA Update |
| Battery | Charging CR2 Battery |
| Operation Temperature | -20℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Size | φ33 x L102mm |
| Impact Resistance | 1000g |
