Blunith, we specialize in tailor-made thermal imaging solutions that reflect your brand’s identity and operational needs.
Custom Branding, Interface Personalization, Feature Customization, Aesthetic Design, Durable Quality, Ongoing Support
Partner with Blunith for a thermal imaging device that’s as unique as your vision. Let’s create a customized solution that meets your exact specifications.
Reach out to start your customization process today.
| Product Series | TM Series | TMi Series | |||
| Typical Model | TM32A3N | TM62A3N | TMi22A3N | TMi32A3N | TMi62A3N |
| Module | |||||
| Detector Resolution | 384×288 | 640X512 | 256×192 | 384X288 | 640×512 |
| NETD | ≤20mK | ||||
| Pixel Pitch | 12μm | ||||
| Response Band | 8-14μm | ||||
| Frame Rate | 50Hz | ||||
| Objective Lens | 25mm,F1.0(Customizable) | ||||
| Power Consumption | 21W | 2.4W | 1.4W | 1.7W | 1.8W |
| Image Adjustment | |||||

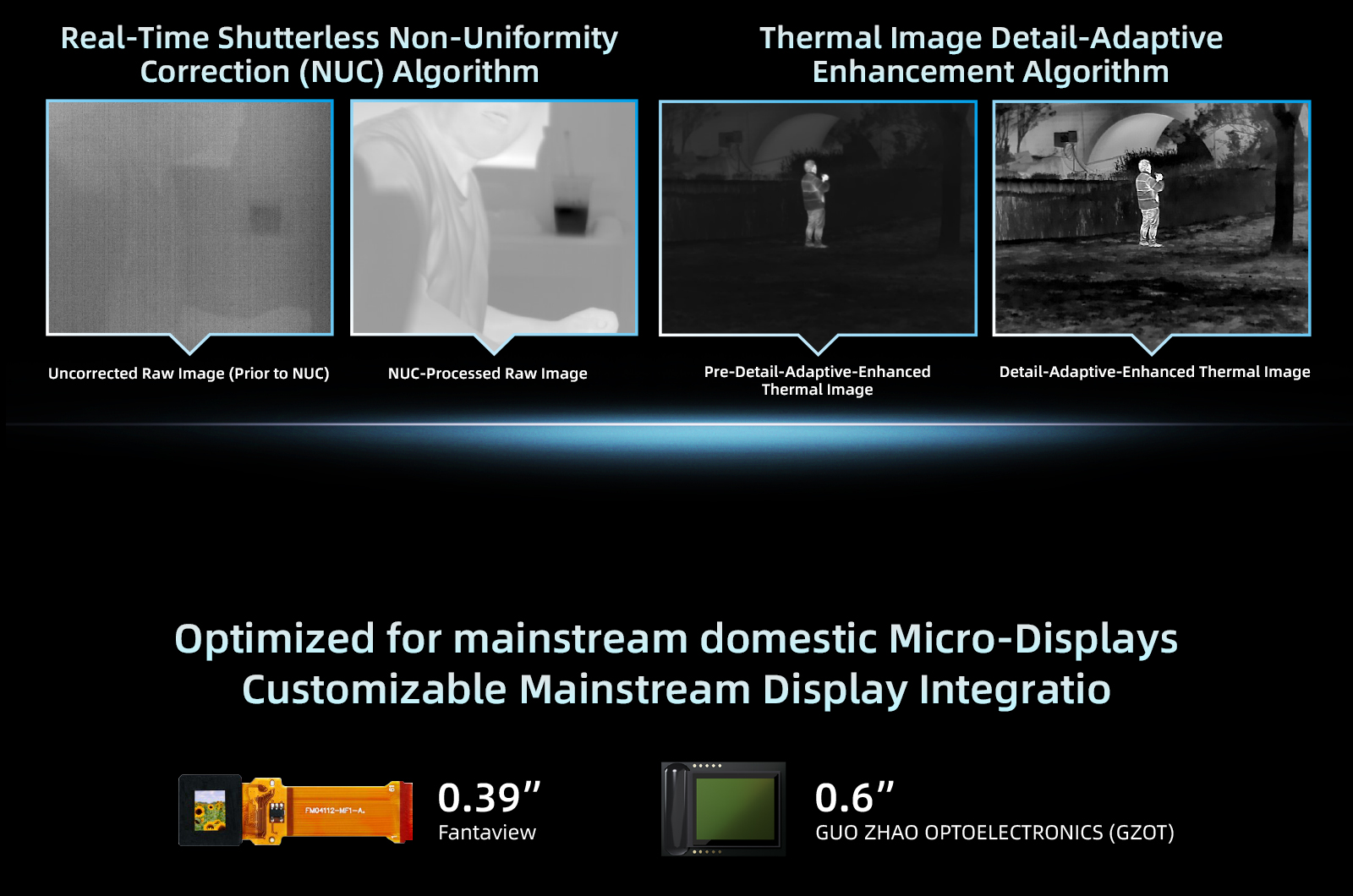

| Non-Uniformity Correction | Support | ||||
| Polarity and Palette | White-Hot Black-Hot/Red-Hot/Iron-Red Rainbow | ||||
| Highlight and Outline | Support | ||||
| Brightness/Contrast Adjustment | Support | ||||
| Automatic Gain Control(AGC) | Support | ||||
| Digital Detail Enhancement(DDE) | Support | ||||
| Picture-in-Picture(PIP) | Support | ||||
| Digital Zoom | 1/2/4/8X | ||||
| Image Flip | Vertical Horizontal Diagonal | ||||
| Bad Pixel Correction(BPC) | 1)Manual Mode Supports crosshair cursor indication to assist users in confirming defective pixel coordinates 2)Automatic Mode Performs comprehensive image-wide scanning to automatically detect bad pixels and log their coordinates. |
||||
| Product Series | TM Series | TMi Series | |||
| Display | |||||
| Type | OLED | ||||
| Size | 0.39 inches | ||||
| Resolution | 1024×768(Customizable) | ||||
| Interaction Function | |||||
| Ul Interface | Customizable | ||||

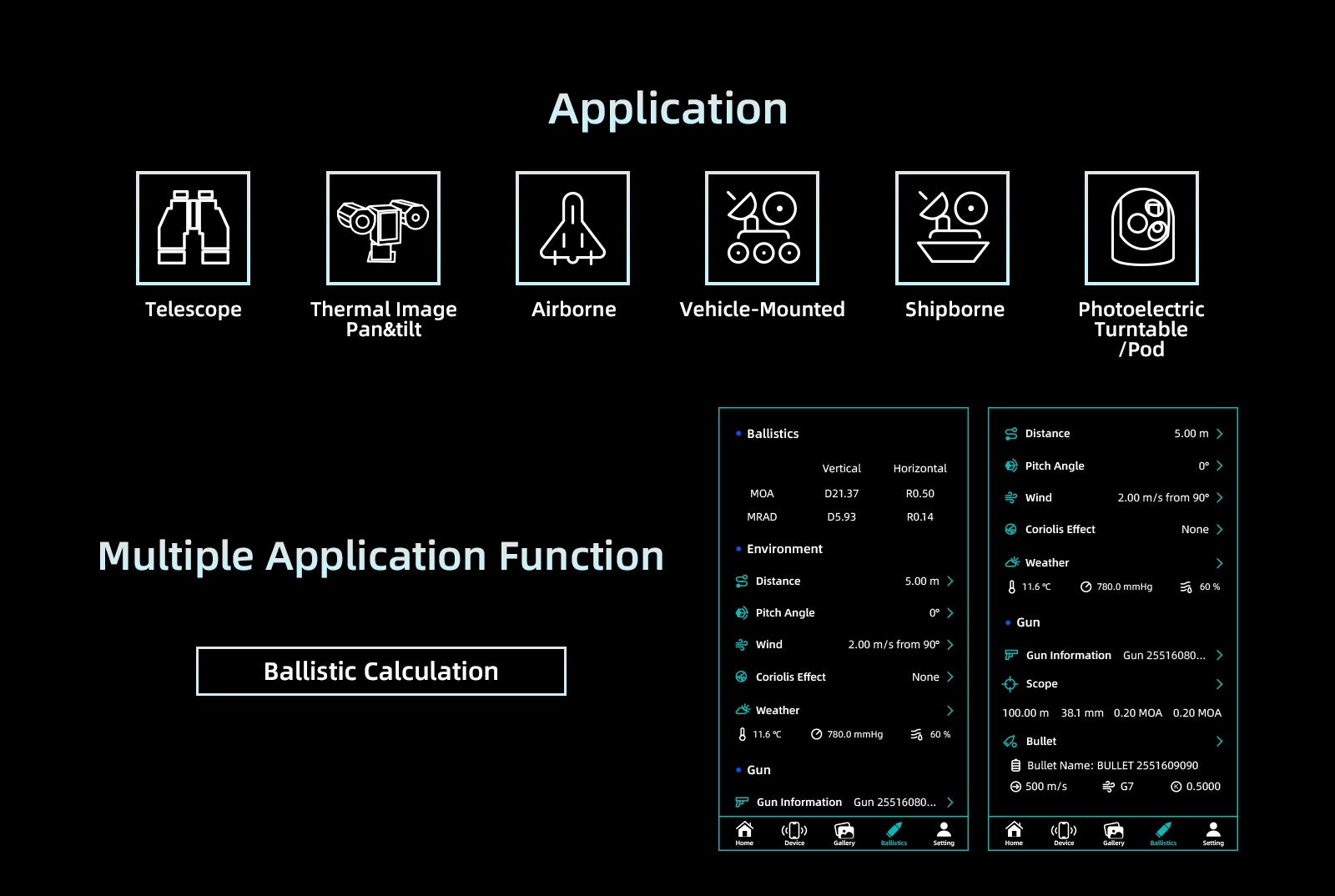

| Ballistic Calculator | Support | ||||
| One Shot Zero | Support | ||||
| Take Photo | Support | ||||
| Recording | Support | ||||

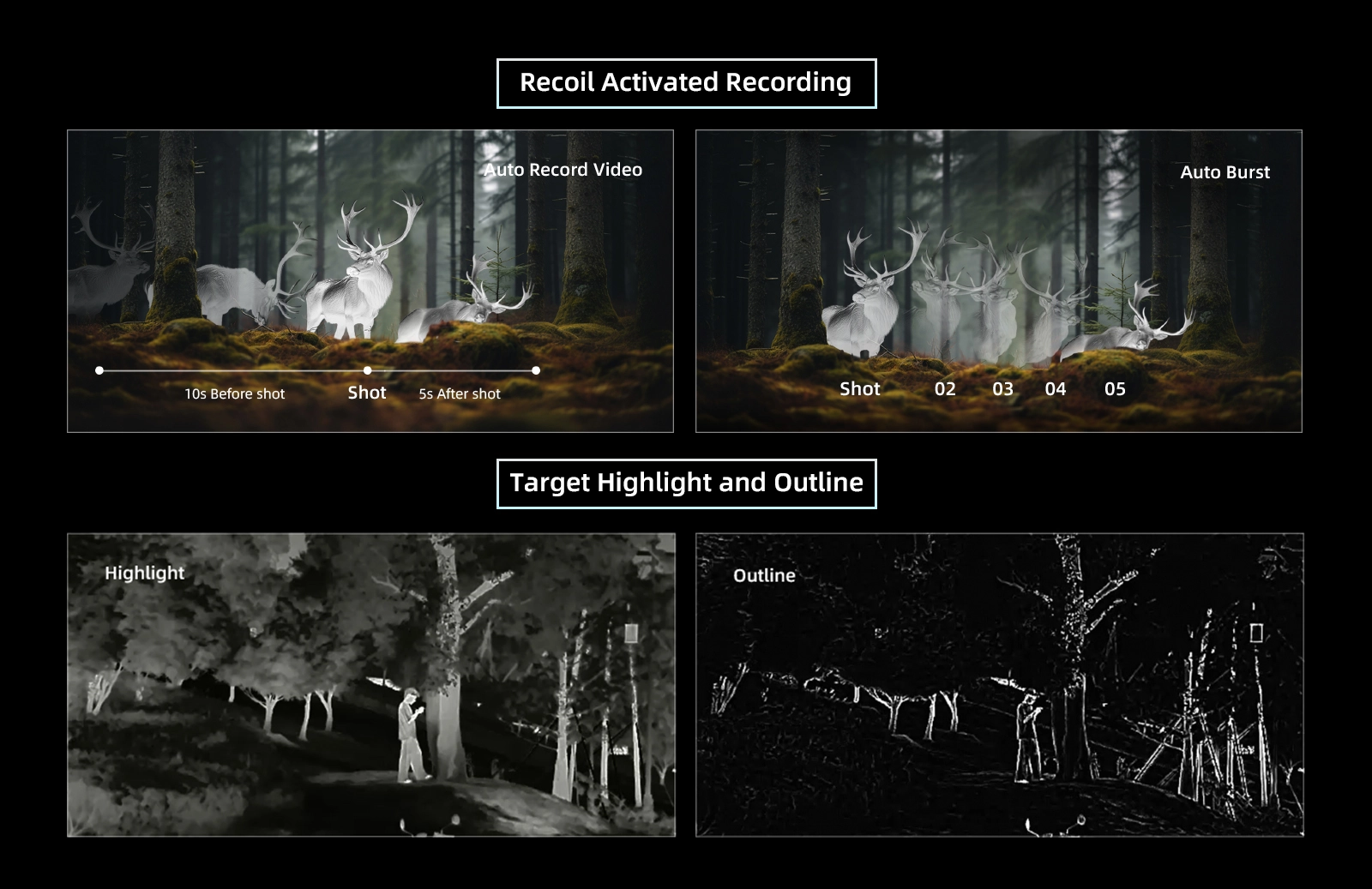

| Recoil-Activated Video | Support | ||||
| Compass | Support | ||||
| WiFi/PDA | Support | ||||
| Data Transmission | USB;WiFi | ||||
| Electrical Interface | |||||
| Power | The power supply range is 3-9V, and the power quantity monitoring is supported |
||||
| Communication | USB;WiFi | ||||
| Button | 3(Customizable) | ||||
| Environmental Adaptability | |||||
| Operating Temperature | -40℃~+80℃ | ||||
| Storage Temperature | -55℃w+95℃ | ||||
| Impact | 1000g half-sine shock pulses of 0.3ms duration | ||||
| Vibration | 10~500Hz,6.06g Three axes,5min per axis | ||||
| Certification | ROHS、REACH、WEEE | ||||
