0910S 9.1mm F1.0
No results found.

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications.

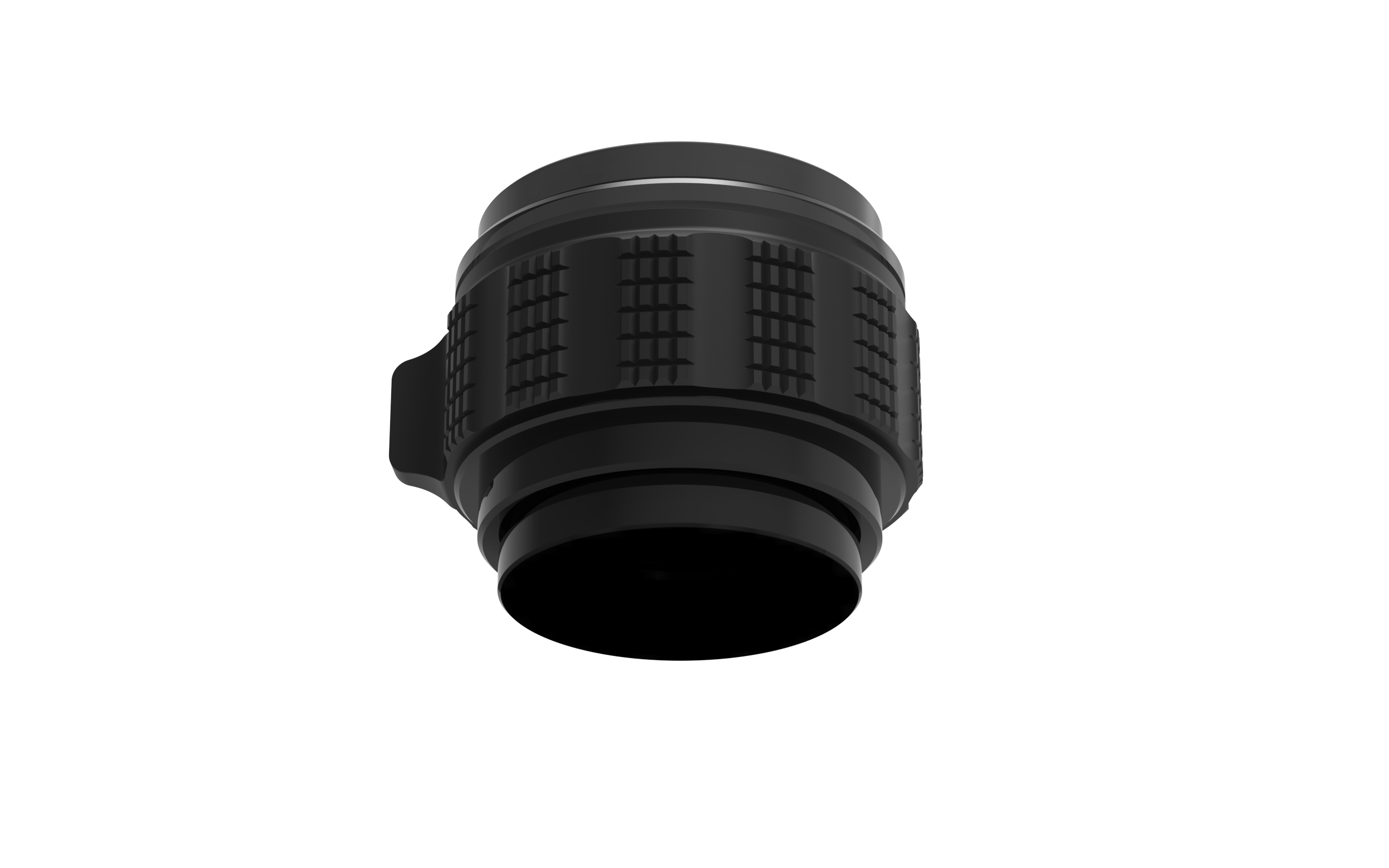

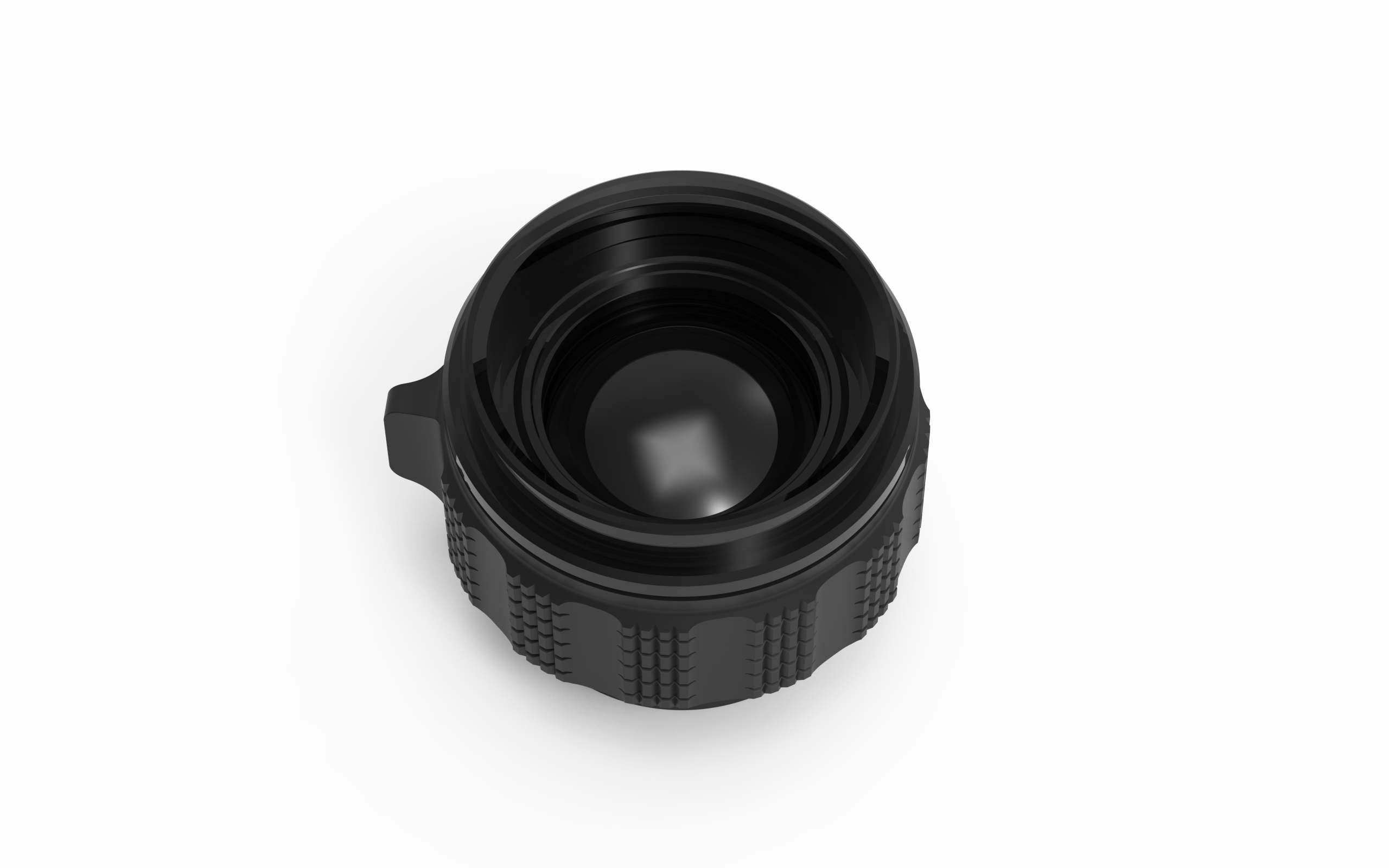

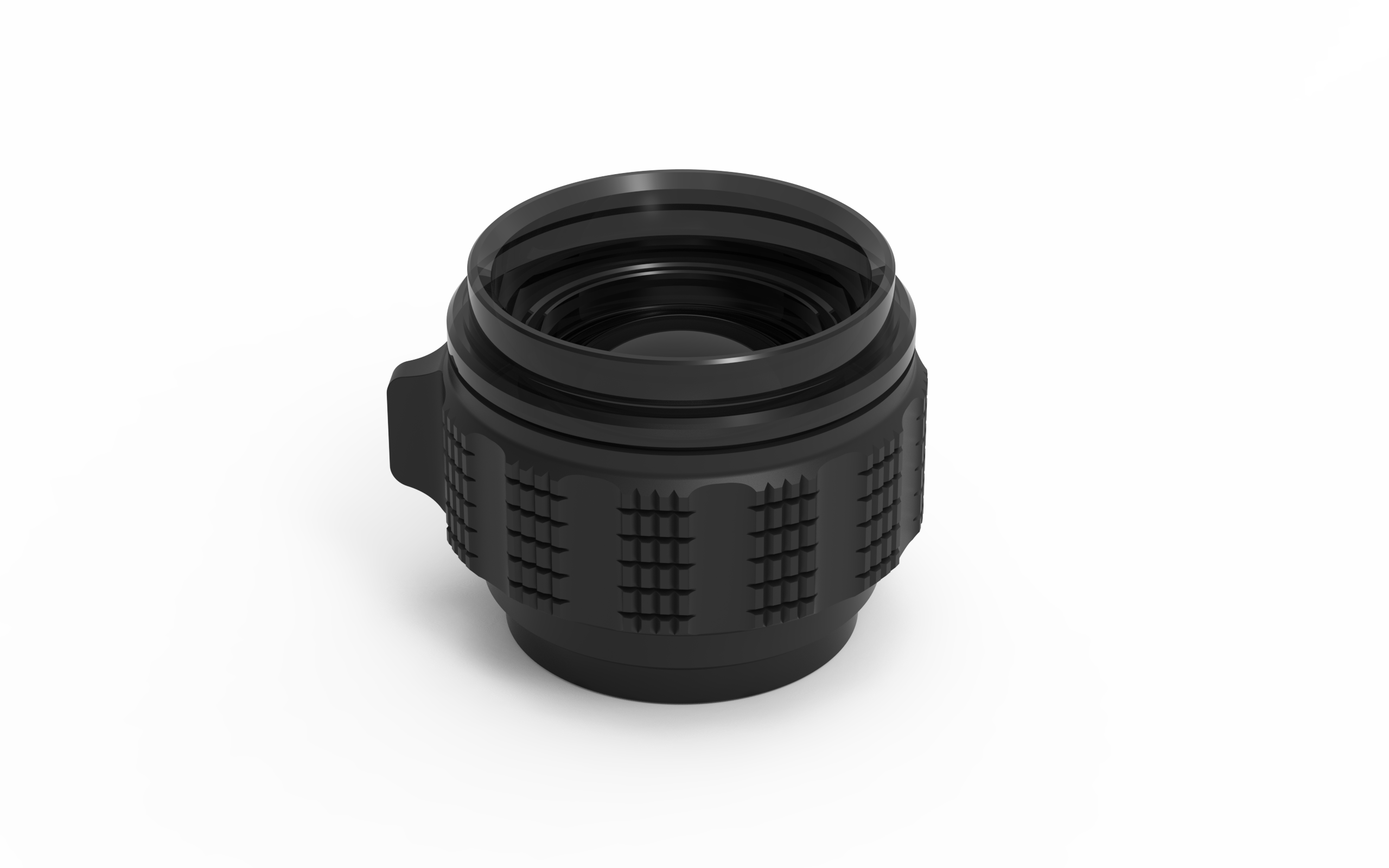

This manual focus lens offers superior performance from 10 m out to infinity. Its lightweight and intuitive design make it a prime choice for your application. This lens is compatible with 17 μm VGA detectors and smaller.

Get Your Free Quote

We will contact you within 24 hours.

    Specs

    0910S   9.1mm F1.0
    Property Value
    Focal Length 9.1mm
    F/# 1.0
    Working Band 8-12μm
    Sensor 640×512 12μm
    FOV 47.1°x37.8°x60.5°
    Transmittance ≥88%
    Distortion ≤10%
    Relative Illuminance ≥80%
    Focusing Type Athermalized
    Focusing Range 0.5m – ∞
    Operation Temperature -40℃ to 60℃
    Sealing IP67
    Lens Material IRG 206
