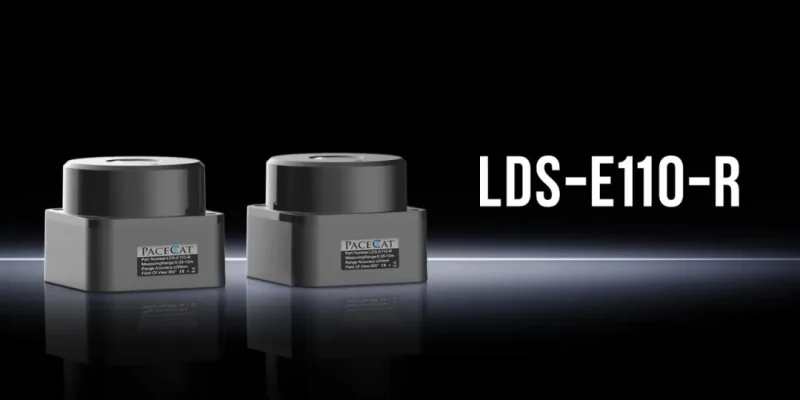

Today, we’re introducing a high-performance, cost-effective ultra-compact laser scanning and ranging radar from Jinhua Lanhai Photoelectricity Technology Co., Ltd.—the LDS-E110-R.
The LDS-E110-R series laser radar stands out for its affordability, reliability, and compact design, making it an exceptional choice for robotic systems requiring precise environmental perception and mapping in confined spaces. It’s one of the most valuable options on the market.
Advantages of the LDS-E110-R:
-
- Synchronized output of target reflectivity for algorithmic decision-making.
- Excellent ranging accuracy and linearity across different reflective targets, achieving ±10mm within 2m.
- Wireless photoelectric data transmission and brushless motor design ensure a long lifespan.
- Infrared-transparent optical cover enhances resistance to dirt and contamination.
Why Trust the LDS-E110-R?
-

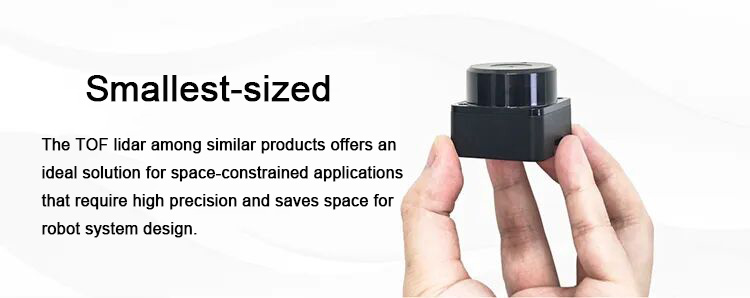

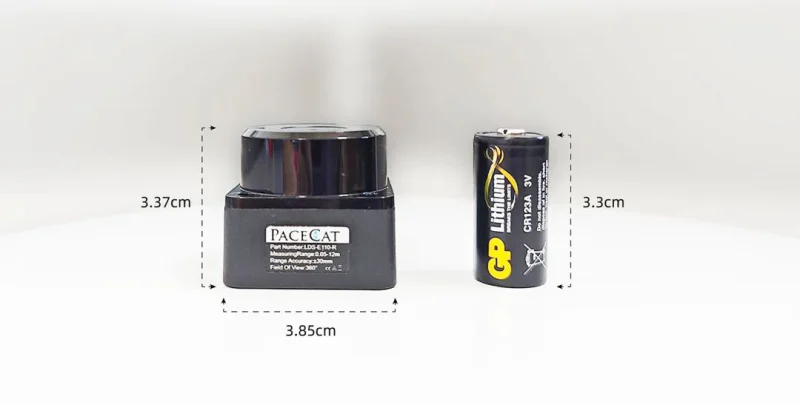

- Ultra-compact design for easy integration: With dimensions of just 38.5×38.5×33.7mm, it fits seamlessly into various robot structures. Weighing under 80g, it adds minimal load!

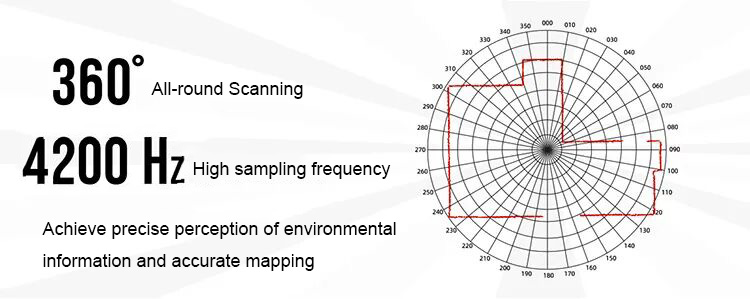

- 360° full-field scanning: Enables comprehensive environmental mapping with no blind spots, providing real-time data for navigation and obstacle avoidance.
- Ranging performance:
- Range: 0.05–12m (90% reflectivity)
- Accuracy: ±10mm (<2m), ±20mm (≥2m)
- Ranging frequency: Up to 4.2KHz
- Scanning frequency: 10Hz for rapid response to dynamic changes.
- Strong resistance to light interference (>65,000 Lux): Stable operation in bright indoor or outdoor environments without interference concerns.
- Low-power design for energy efficiency: Consumes <1.5W with 5.1V DC power supply, ensuring worry-free long-term operation.
- Ranging performance:
Applications:
-

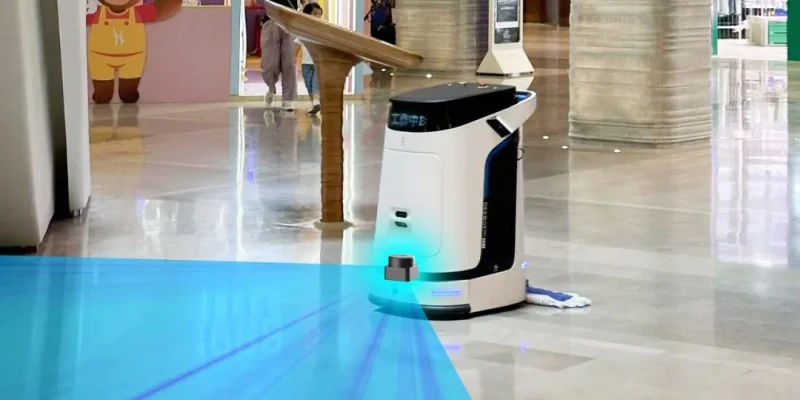

- Floor-cleaning robots
- Supermarket service robots
- Home patrol robots
- AGVs (Automated Guided Vehicles)

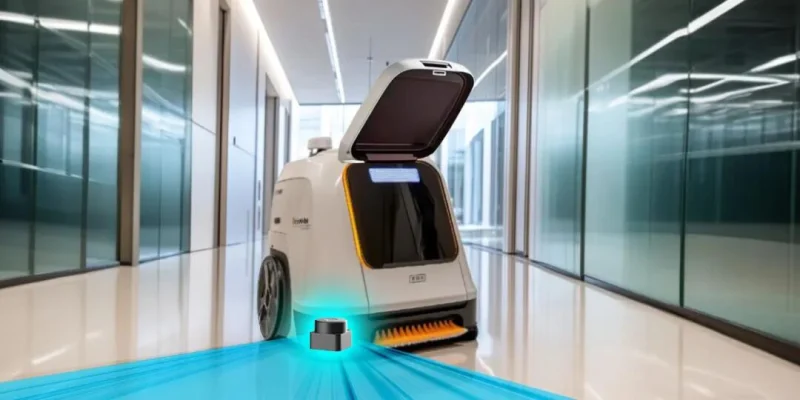

- Commercial cleaning robots
- Smart office trash bins
Jinhua Lanhai Photoelectricity Technology Co., Ltd.—Your Trusted Laser Radar Partner!
